Sling Angles and Capacity: Why 45 Degrees Changes Everything

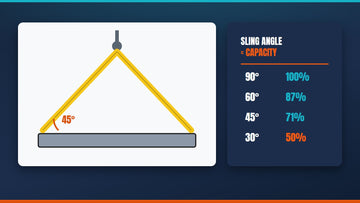

Sling legs at 45 degrees with a capacity chart from 90 to 30 degrees

Here is the fact that surprises everyone the first time: two slings sharing a load do not automatically each carry half of it. The angle they make with the load decides how hard each leg actually pulls, and flat angles punish you fast.

The physics in one paragraph

A sling leg pulling straight up spends all its strength lifting. Tilt that leg, and part of its tension starts pulling sideways — squeezing the load — instead of up. The flatter the angle, the more of the sling's effort goes sideways, so the tension in the leg has to rise just to deliver the same lift. The load did not get heavier; the geometry got worse.

The numbers riggers memorize

Measured as the angle between the sling leg and the horizontal (load surface):

  • 90° (vertical): full rated capacity — the number on the tag.
  • 60°: about 87% of vertical capacity per leg.
  • 45°: about 71% — nearly a third of your capacity gone.
  • 30°: exactly 50%. Half the sling's rating, spent on geometry.
  • Below 30°: where riggers stop. Tension climbs viciously from here, which is why sub-30° hitches are the ones in accident reports.

Worked example: a 4,000 lb load on two legs at 45°. Naive math says 2,000 lb per leg; real math says each leg sees about 2,830 lb of tension. If those slings were rated 2,500 lb vertical, the "obviously fine" lift is overloaded.

What this means when you rig

  • Longer slings are the cheap fix. Length is what steepens the angle on a wide load — that is why we sew slings to your exact length in the custom sling builder rather than making you rig around a stock length.
  • Hitch type stacks on top. Chokers reduce capacity further, baskets can increase it — but a flat-angled basket gives the gain right back. The sling types guide covers the hitches.
  • The same trig governs tie-downs and bridles. A flat V-bridle loads each chain leg harder than the pull; an angled tie-down delivers less of its tension into holding the load. Steeper is stronger, everywhere rigging exists.

The habit that keeps lifts boring

Before the load leaves the ground: estimate the angle (a leg whose height off the load equals its horizontal reach is at 45°), apply the reduction, and compare against the tag — with the hitch factored in. Thirty seconds of arithmetic, every lift, forever. And the equipment side of the same rule: lifts get lifting gear with lifting ratings — never tie-downs, for the reasons in this guide. Matching rigging hardware lives in sling hooks.

Always rig within the rated Working Load Limit. Inspect straps and chain before each use and remove them from service if cut, gouged, excessively worn, corroded, or deformed.
